通風地板
VAF600/VAF610 通風活動地板 VAF600/VAF610 Air-flow Perforated Panel 地板尺寸 Size（mm）：600*600 610*610mm 緯天牌防靜電通風活動地板及各種配件 通風板是為了計···
所屬分類：防靜電地板
產品咨詢： 13861259188
- 產品詳情
- 圖片集錦

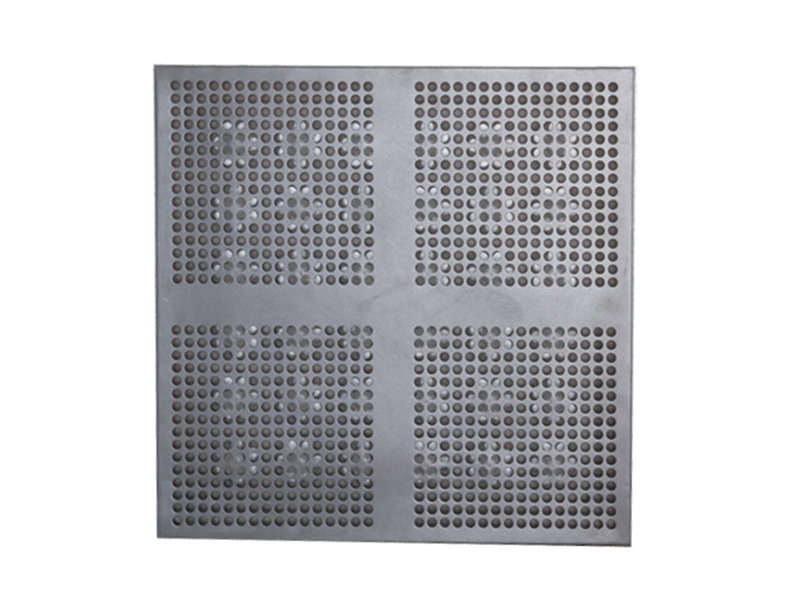

VAF600/VAF610 通風活動地板
VAF600/VAF610 Air-flow Perforated Panel
地板尺寸 Size（mm）：600*600 610*610mm
“緯天”牌防靜電通風活動地板及各種配件
通風板是為了計算機機房通風而專門設計的，可根據用戶的不同需要，提供各類通風量的通風板。同時，通風板可安裝調風葉片，以調節風量的大小。另外各類圓形、方形走線盒滿足用戶的不同需求。
Vitian Anti-static perforated panels and accessories
Perforated panels are designed to computer rooms for airflow. Vitian are able to supply perforated panels of different airflow volumes according to different requirements from customers. Meanwhile, dampers can be applied to perforated panels, so as to control the volume of airflow. To meet different needs from customers, Vitian also supply various kinds of round and square outlet boxes.
產品應用
各類計算機機房，網絡通信機房，監控指揮室，電子廠房潔凈室、凈化室、無塵室等，及有防靜電和通風要求的場合。
Application：
All manner of computer room, network service room, control center, electric shop, clean room, dustless chamber and occasions which require on antistatic and air conditions.

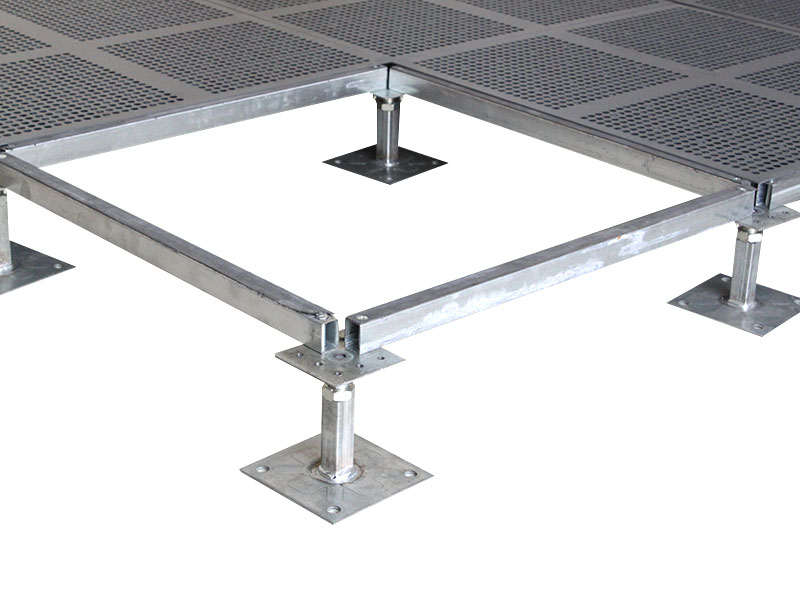

全鋼防靜電通風活動地板 Airflow Raised Access Floor in Steel
全鋼組成，表面采用HPL或者PVC沖孔貼面，面板選用SPCC硬質鋼板，高壓沖孔結構，四周導電嵌條鑲邊，支架橫梁選用鋼材模壓成型，螺桿高度可調節。
Full Steel, HPL or PVC punched tile, surface punched panel which is SPCC hard steel, manual welding for the bottom square tube, origination domestic. Imported paint, conductive rim, pedestals and stringers are pressured forming with steel, lead screw could adjust the height.
鋁合金防靜電通風活動地板 Airflow Raised Access Floor in Aluminum
高壓鑄鋁合金板，HPL或PVC貼面，防靜電功能較佳。
重量輕，承重強，精度好。
易于挪動，使用壽命長。
通風率可調。
Full aluminum, die casting, top with HPL/PVC, excellent anti-static;
Light and high loading capacity, high dimensional precision;
Convenient removing, long performane life;
The open ratio can be changed easily by damper
BRUSH GROMMET 毛刷盒
采用優良尼龍6防火刷毛，有效阻隔旁通空氣，提高冷卻效率。對架空地板電纜開口進行保護，毛刷疊加，具備更好的密封效果.
Made from nylon6 fireproof materials
Reduced by pass air and Improve cooling efficiency
Forms a fully protected raised floor cable openings
Proven better sealing performance - overlapping brushes
圓形毛刷盒 Round Brush Grommet
Inner Size:100mm Outer Size: 140mm
方形毛刷盒 Square Brush Grommet
Inner Size:100*100mm Outer Size:176*176*38 mm
半開型毛刷盒 Split Integral Brush Grommet
Inner Size: 224*180mm Outer Size: 280*210*28 mm
整體毛刷盒Integral Brush Grommet
Inner Size: 201*130mm Outer Size:281*211*41 mm
圓形走線盒 Round Outlet Box
Inner Size: 125 mm Outer Size:138mm
